XTI Aircraft TriFan 200 (cargo)

TriFan 200 (cargo)
XTI Aircraft Company
Englewood, Colorado, USA
www.xtiaircraft.com

XTI Aircraft’s vision is to transform business aviation for a more efficient and sustainable future. The TriFan 200 will combine the performance of a fixed-wing business aircraft with the vertical takeoff and landing (VTOL) capability of a helicopter, delivering the convenience of point-to-point air cargo travel. XTI estimates that the TriFan 200 will have a maximum payload of 500 lb (227 kg) and have a maximum range of 200 nm (370 km).

XTI is targeting the existing turbine business aircraft and rotorcraft markets, and the emerging Advanced Air Mobility (AAM) market. The TriFan 200 air cargo hybrid-electric VTOL aircraft is specifically differentiated from the hundreds of eVTOL (electric VTOL) aircraft under development by its significantly payload, range, and speed. The fixed-wing air cargo airplane accommodates its 500 lb (227 kg) payload and is expected to conduct VTOL operations using existing infrastructure including over 5,000 existing helipads in the U.S. alone, as well as driveways, back yards, job sites, private landing pads, remote locations — wherever it’s safe and legal. Additionally, by rotating its front fans to intermediate or fully forward positions, it can use any runway available to increase payload and range. The aircraft is designed to use all three ducted fans for VTOL operations, then transition to forward flight using only the front fans.

Specifications:

Aircraft type: Hybrid-electric VTOL cargo aircraft
Piloting: Unknown, possibly remote piloting or autonomous
Maximum payload: 500 lb (227 kg)
Maximum range: 200 nm (370 km)
Propellers: 3 ducted fans
Electric motors: 3 electric motors
Powersource: Diesel engine (to create the electricity for the propellers and all other aircraft systems)
Length: 28 ft (8.5 m)
Wingspan 24.2 ft (7.4 m)
Height (to top of tail): 12 ft (3.7 m)
Wing: 1 main mid-wing
Tail: Technically a cruciform tail (almost a T-tail)
Landing gear: Retractable tricycle wheeled landing gear

Note:

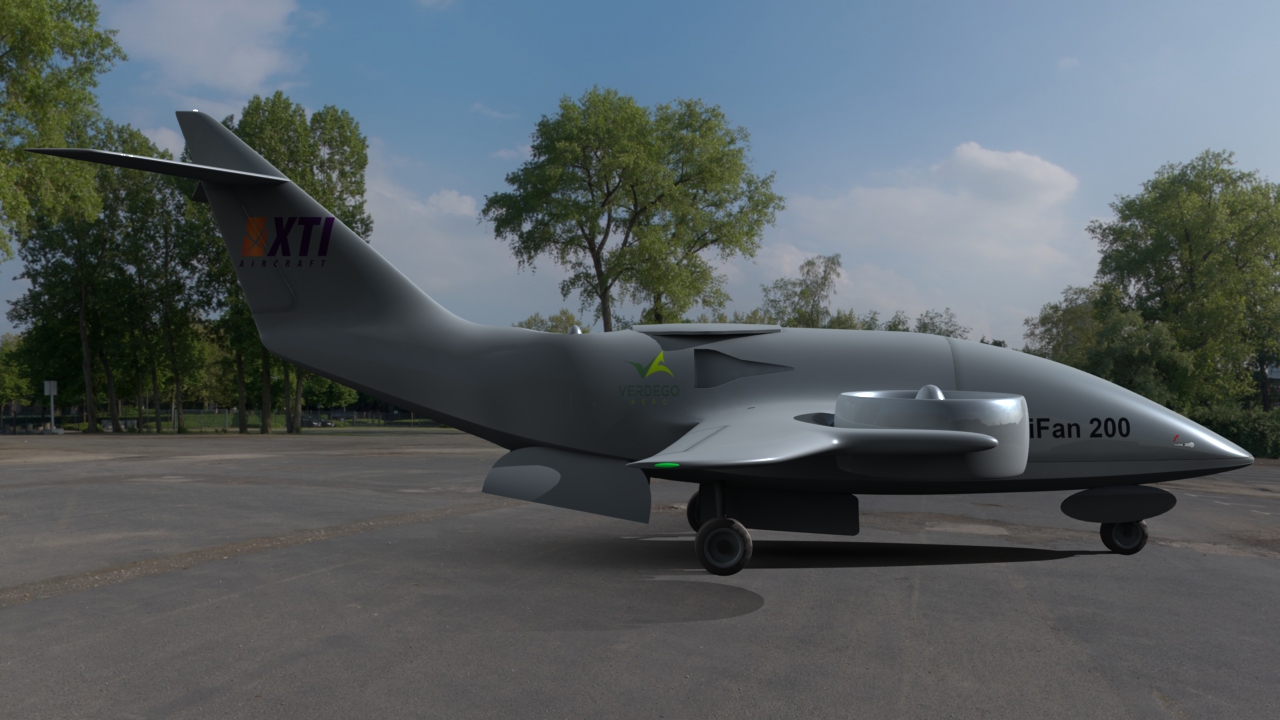

The XTI TriFan 200 is under development. All information and specifications are estimates and are subject to change and FAA certification. All images of the TriFan 200 are computer-generated simulations.
